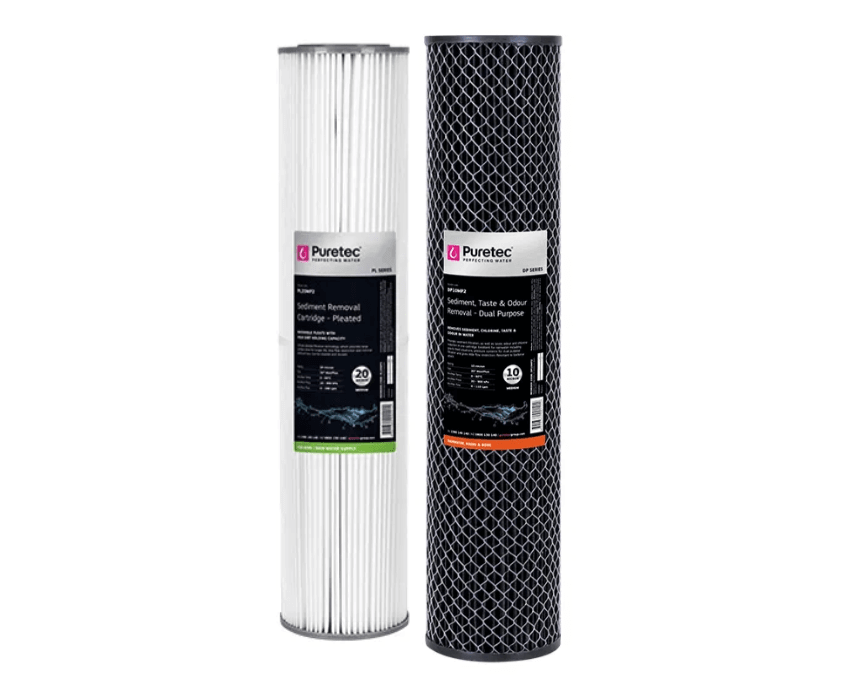

PL05MP2 Cartridge

• •Large surface area for sediment removal

• •Pleated sediment cartridge - washable

• •5 micron, 4.5" x 20" cartridge

The Puretec PL05MP2 sediment cartridge is manufactured from a durable non-woven and reusable polyester fabric that is suitable for a wide range of filtration uses.

The media is pleated around a polypropylene core for added strength and the ends are immersed in a thermo-setting vinyl plastisol.

Embedding and sealing each end of the pleat in this fashion fuses the three components together forming a unitized end cap and gasket. The overlap seam is sonically welded to reduce internal bypass improving filtration efficiency.

The media is pleated to maximize dirt holding capacity and extend the time period between changes or cleaning.

The Puretec PL05MP2 sediment cartridge is resistant to both bacteria and chemical attack making them suitable for a variety of residential, commercial and industrial applications.

• • Ideal for rainwater & bore water
• • Resistant to bacteria, removes sediment
• • 10 Micron, 4.5" x 20" cartridge

The Puretec DP10MP2 Dual-Purpose long-life cartridge is constructed from a carbon-impregnated non-cellulose media. They offer sediment filtration, as well as taste, odour and chlorine taste, and odour reduction in one cartridge. Unlike cellulose cartridges, DP Series cartridges are resistant to bacterial attack allowing them to be used for non-chlorinated water applications.

Puretec DP Series cartridges are ideal for rainwater tanks, bores, polishing filters on reverse osmosis machine, drinking water and many other applications.

Pleats provide an additional surface area for high dirt-loading capacity, while maintaining minimal pressure drop. This combination of pleated polyester media and carbon filtration produces an outstanding filter cartridge with extended service life.
